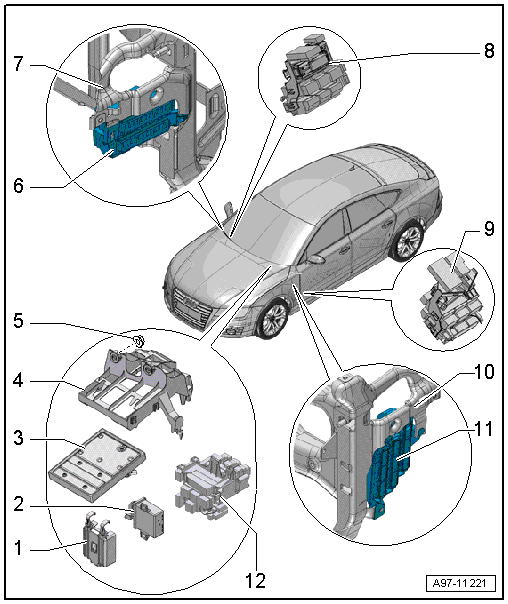

Instrument Panel Relay Carrier And Fuse Panel And A-Pillar Overview: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- For the Headlamp range control module -J431-
- Removing and installing, refer to RELAY PANEL MOUNT, UNDER INSTRUMENT PANEL, LEFT SIDE, VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .
- Headlamp Range Control Module -J431-
- Overview, refer to AUTOMATIC HEADLAMP VERTICAL AIM (RANGE) CONTROL OVERVIEW .
- Vehicle Electrical System Control Module -J519-
- Removing and installing, refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519- .
- Mount
- For the Vehicle electrical system control module -J519- and relay panel
- Removing and installing, refer to RELAY PANEL MOUNT, UNDER INSTRUMENT PANEL, LEFT SIDE, VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .
- Nut
- 3 Nm
- Quantity 2
- Fuse Panel C -SC- on the right side of the instrument panel
- Removing and installing, refer to FUSE PANEL C, INSTRUMENT PANEL, RIGHT SIDE .
- Fuse Panel, removing and installing, refer to FUSE PANELS, INSTRUMENT PANEL, RIGHT SIDE .
- Right Central Tube
- Connector Station On The Right A-Pillar
- Removing and installing, refer to CONNECTOR STATION, RIGHT A-PILLAR .
- Connector Station On The Left A-Pillar
- Removing and installing, refer to CONNECTOR STATION, LEFT A-PILLAR .
- With 46-pin Connector -T46a-, removing and installing, refer to 46-PIN CONNECTOR, CAN CUT-OFF CONNECTOR .
- Left Central Tube
- Fuse Panel B -SB- on the left side of the instrument panel
- Removing and installing, refer to FUSE PANEL B, INSTRUMENT PANEL, LEFT SIDE .
- Fuse Panel, removing and installing, refer to FUSE PANELS, INSTRUMENT PANEL, LEFT SIDE .
- Relay Carrier Under Left Instrument Panel
- Removing and installing, refer to RELAY PANEL UNDER INSTRUMENT PANEL, LEFT SIDE .
