Automatic Headlamp Vertical Aim (Range) Control Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

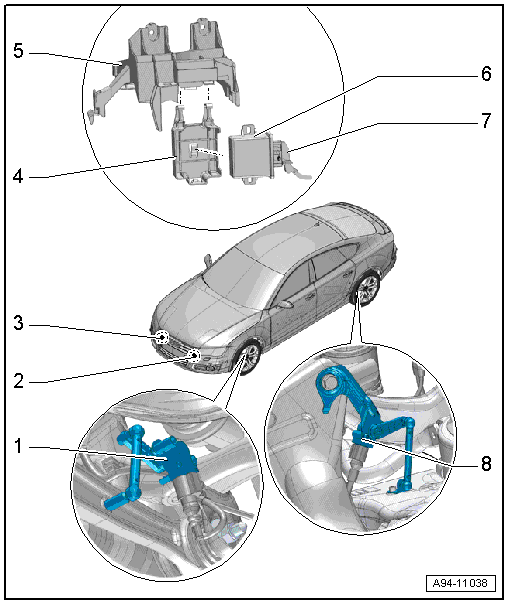

- Left Front Level Control System Sensor -G78-
- Component location: on the control arm in the front.
- Removing and installing, refer to Front Suspension .
- Left Headlamp Beam Adjustment Motor -V48-
- Only HID headlamps
- Removing and installing, refer to HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49- .
- Right Headlamp Beam Adjustment Motor -V49-
- Only HID headlamps
- Removing and installing, refer to HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49- .
- Mount
- For the Headlamp range control module -J431-
- Removing and installing, refer to RELAY PANEL MOUNT, UNDER INSTRUMENT PANEL, LEFT SIDE, VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .
- Mount
- For the Vehicle electrical system control module -J519- and the relay panel under the instrument panel on the left side.
- Overview, refer to INSTRUMENT PANEL RELAY CARRIER AND FUSE PANEL AND A-PILLAR OVERVIEW .
- Headlamp Range Control Module -J431-
- Removing and installing, refer to CORNERING LAMP AND HEADLAMP RANGE CONTROL MODULE .
- Electrical Connector
- Left Rear Level Control System Sensor -G76-
- Component location: on the rear control arm.
- Removing and installing, refer to Rear Suspension
