Component Location Overview - Telephone System, Through My 2014

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

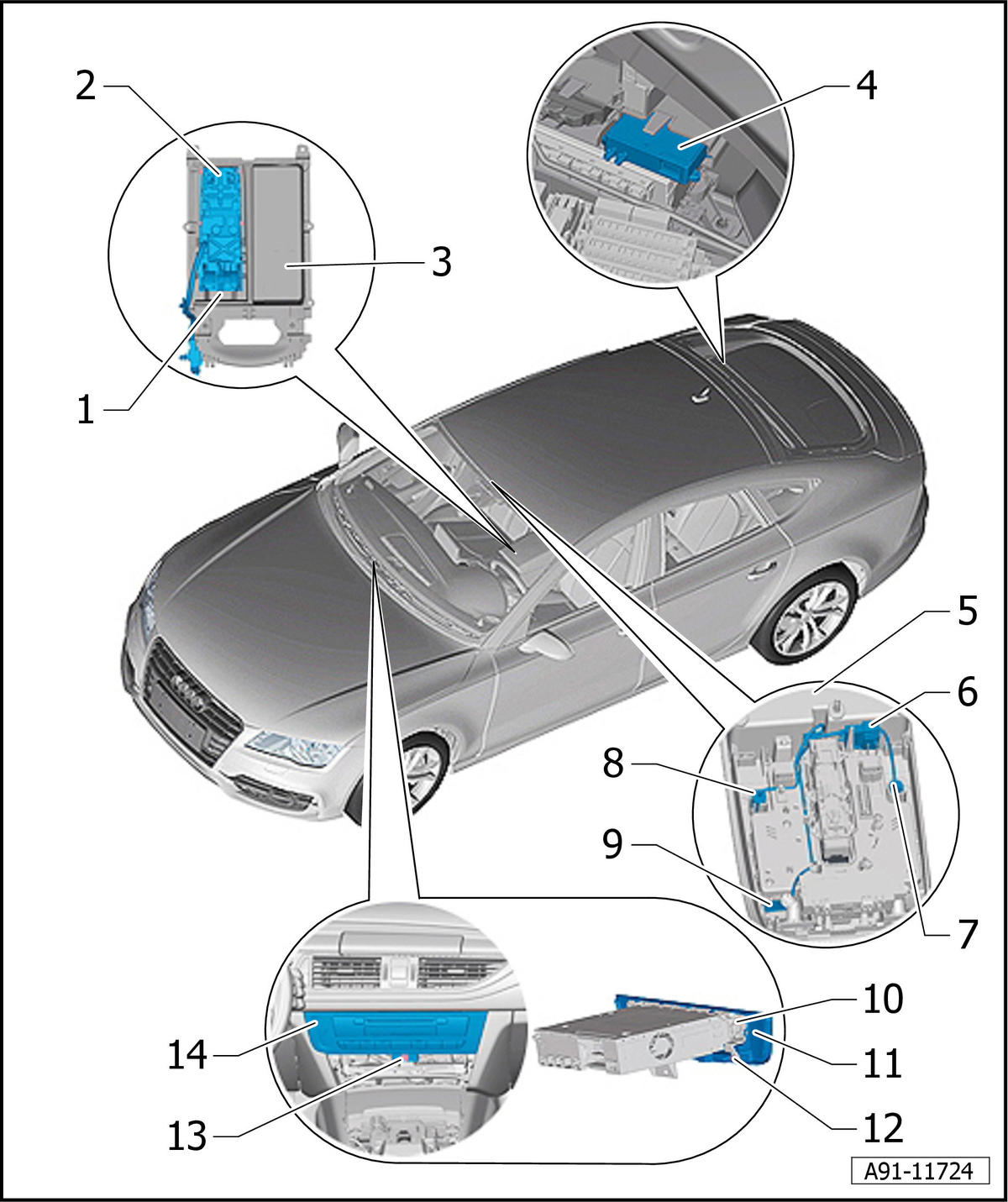

Fig 1: Component Location Overview Of Telephone System, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

Telephone Baseplate -R126-
- Removing and installing. Refer to FRONT Telephone Baseplate -R126-, REMOVING AND INSTALLING, THROUGH MY 2014 .
Screw
- 1 Nm
- Quantity: 5
Center Console Storage Compartment
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Cellular Telephone Amplifier -R86-
- Connector assignment Cellular Telephone Amplifier -R86- CONNECTOR ASSIGNMENT, THROUGH MY 2014 .
- Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, THROUGH MY 2014 .
Front Interior Lamp -W1-
- Microphone Unit in Front Roof Module -R164-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
6-Pin Connector -T6e-
Left Front Microphone -R140-
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
Right Front Microphone -R141-
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
Interior Microphone -R74-
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
Information Electronics Control Module 1 -J794-
- Cell phone preparation connector assignment, RMC. Refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT, RMC AND 9ZF
- Pin assignment, cell phone preparation, MMI. Refer to CELL PHONE PREPARATION CONNECTOR ASSIGNMENT, MMI, 9ZF
- Bluetooth car telephone, connector assignment. Refer to BLUETOOTH CAR PHONE CONNECTOR ASSIGNMENT, MMI, 9ZW .
- Bluetooth hands-free calling connector assignment, RMC. Refer to BLUETOOTH HANDS-FREE CALLING CONNECTOR ASSIGNMENT, RMC 9ZX .
- Bluetooth hands-free calling connector assignment, MMI. Refer to BLUETOOTH HANDS-FREE SETUP CONNECTOR ASSIGNMENT, MMI, 9ZX .
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Trim
Screw
- 1 Nm
- Quantity: 4
Screw
- 3 Nm
Information Electronics Control Module 1 -J794-
