Dual Clutch, Installing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE:

Replace the O-ring and the circlip.

-- Clean the sealing surface on the clutch cover.

-- Turn the rectangular rings -B- on the hub and check for ease of movement and axial play.

NOTE:

If the rectangular rings do not move easily, then the dual clutch must not be installed.

-- Clean the transmission housing around the dual clutch and the sealing surface.

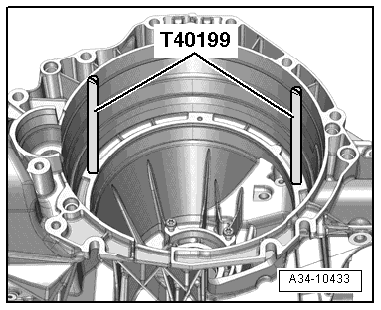

Fig 1: Identifying Special Tool Placement, T40199

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Make sure no dirt can fall into the transmission while cleaning.

-- Install the Oil Sump Assembly Pin T40199 into the threaded hole in the transmission housing as illustrated.

-- Check the hole -arrow- in the transmission for wear grooves.

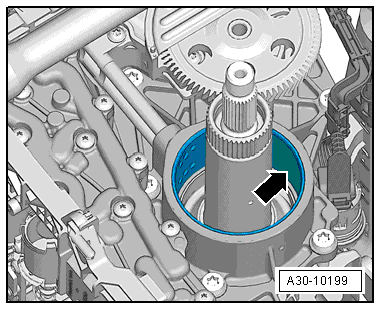

Fig 2: Checking Transmission Hole

Courtesy of AUDI OF AMERICA, LLC

-- Coat the O-ring -C- and hub -B- on the dual clutch with ATF.

Fig 3: Identifying Dual Clutch Components

Courtesy of AUDI OF AMERICA, LLC

-- Install the dual clutch into the transmission housing. Using short lifting/turning motions, allow the input shaft to engage into the ATF pump splines and transmission shafts as illustrated.

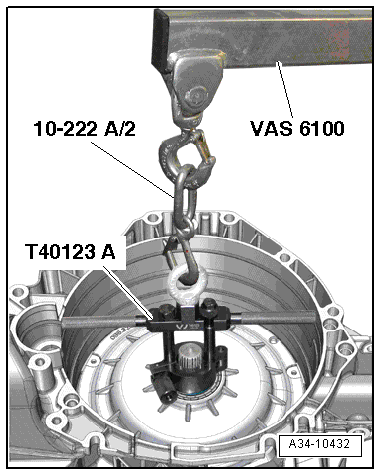

Fig 4: Identifying Dual Clutch, Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

The dual clutch is installed correctly when the clutch cover O-ring noticeably contacts the edge of the transmission housing.

Fig 5: Clutch Cover Tightening Specification And Sequence

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Do not let the O-ring get caught when installing.
Always follow the tightening sequence when tightening the clutch cover bolts -1 through 5-, refer to (Figure).

-- Tighten the clutch cover bolts -1 through 5- to the tightening specification and sequence, refer to Figure.

-- Replace the input shaft seal, refer to INPUT SHAFT SEAL, REPLACING .

-- Install the flywheel, refer to Installing .

-- Fill the ATF after the transmission is installed:

Audi A4, A5, Q5, refer to Automatic Transmission Fluid .
Audi A6, A7, refer to Controls, Housing .

Always perform the necessary "Guided Functions" on the Vehicle Diagnostic Tester after replacing the dual clutch.

Audi A4, A5, Q5, refer to Transmission Fluid orTransmission Control Component Location Overview .
Audi A6, A7, refer to Controls, Housing .
