Impact Member, Removing And Installing, Vehicles Without Trailer Hitch, Audi A7/S7: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to REMOVING .
-- If equipped, remove the bass speaker. Refer to LEFT/RIGHT REAR BASS SPEAKER - R15- / - R17-, REMOVING AND INSTALLING .

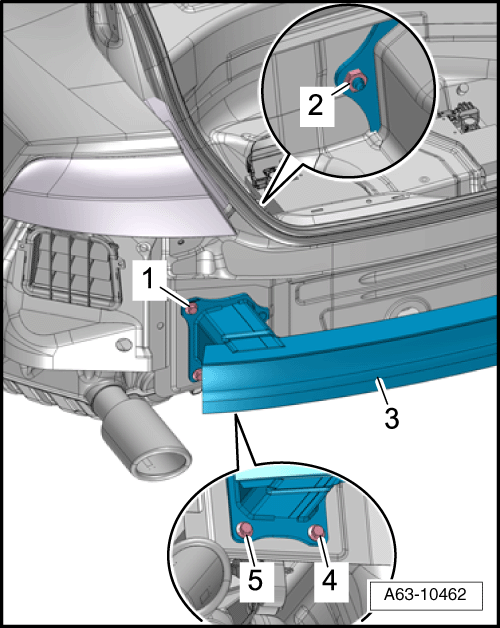

-- Remove the nut -2- and bolts -1, 4 and 5-.
-- Remove the impact member -3-.
