Upper Bumper Cover Mount, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

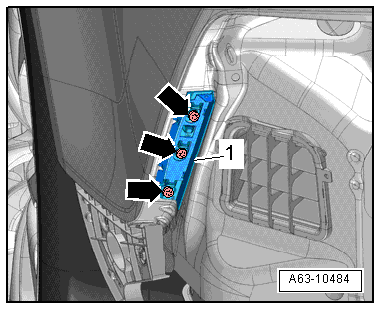

Fig 1: Identifying Front Bumper Cover Upper Mount And Bolts
GWWA63-10484Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to REMOVING .

-- Remove the bolts -arrows- and the front bumper cover upper mount -1-.
