Bumper Cover, Adjusting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Adjusting Tool T40281

Gap dimensions. Refer to BUMPER COVER GAP DIMENSION .
Tightening specifications. Refer to OVERVIEW - BUMPER COVER .

-- Remove the lock carrier cover. Refer to Removing .

Height adjustment:

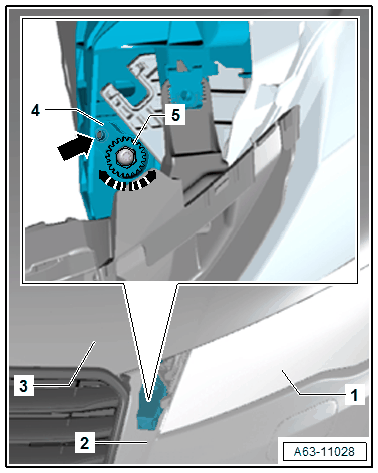

Fig 1: Identifying Adjusting Screw

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

-- Loosen or tighten the adjusting screw -5- in stages using the Adjusting Tool T40281 -arrows- until the gap dimension of the bumper cover -2- to the hood -3- and headlamp -1- is reached.

Dimension -a- = 4.5 mm

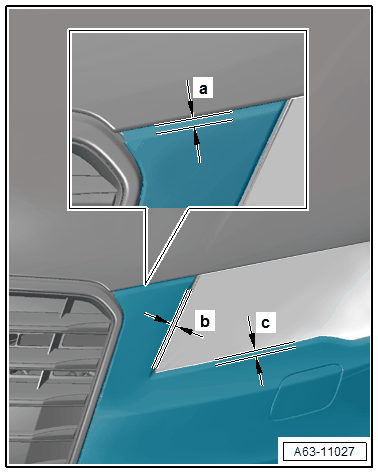

Fig 2: Identifying Dimensions -A-, -B- And -C-
Courtesy of AUDI OF AMERICA, LLC
Dimension -b- = 3.5 mm
Dimension -c- = 3.0 mm

-- Tighten the bolt to -4- to 8 Nm.

-- Check the gap dimensions again and repeat the adjustment as first described, if needed.

-- Check the gap dimension and repeat the adjustment if necessary.

Longitudinal Setting:

-- Loosen the bolt -2-.

-- Adjust the front bumper cover in the longitudinal direction.

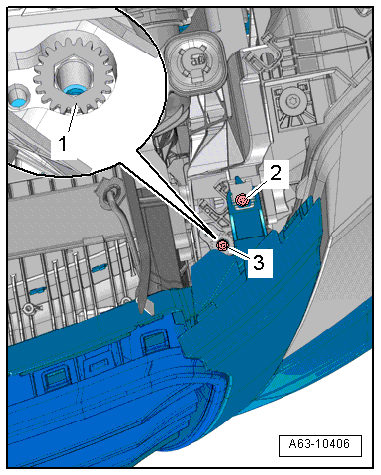

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -3- to the specification, refer to -item 12-.

-- Check the gap dimension and repeat the adjustment if necessary.
