Side Reinforcement Brace, Removing And Installing, Audi RS7: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

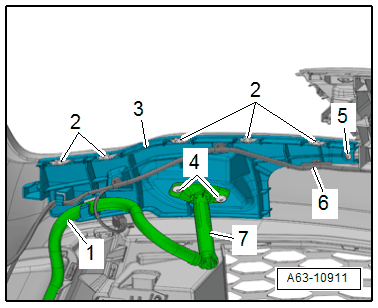

-- Remove the spray nozzle cover. Refer to Removing .
-- Remove the front bumper cover. Refer to Removing .
-- Free up the windshield washer fluid hose -1-.
-- Remove the bolts -4- and move the spray nozzle -7- with washer fluid hose attached to the side.
-- Free up the wiring harness -6-.
-- Carefully remove the clips -2- from the guide tab with a screwdriver.
-- Remove the bolt -5-.
-- Remove the reinforcement brace -3- to the rear.
