Outside Air Temperature Sensor -G17- Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

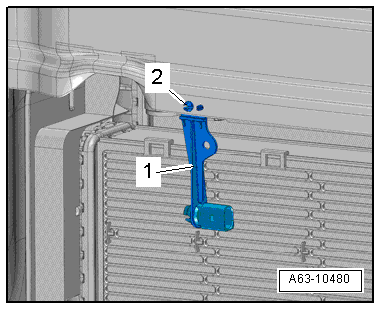

Fig 1: Identifying Expanding Pin And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to REMOVING .

-- Remove the Outside Air Temperature Sensor -G17-. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17- .

-- Remove the expanding pin -2- and the bracket -1-.
