Component Location Overview - Storage Compartment/Covers

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

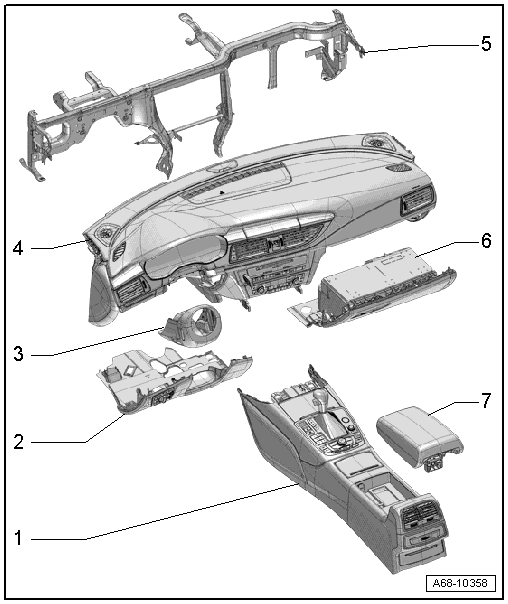

Fig 1: Identifying Storage Compartment/Covers Component Location

Courtesy of AUDI OF AMERICA, LLC

Center Console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
Driver Side Instrument Panel Cover
- Overview. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .
Trim panel
- For the steering column switch module
- Overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Instrument Panel
WARNING: Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
Central Tube
- For the instrument panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL CENTRAL TUBE .
Glove Compartment
- Overview. Refer to OVERVIEW - GLOVE COMPARTMENT .
Front Center Armrest
- Overview. Refer to OVERVIEW - FRONT CENTER ARMREST .
