Overview - Glove Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

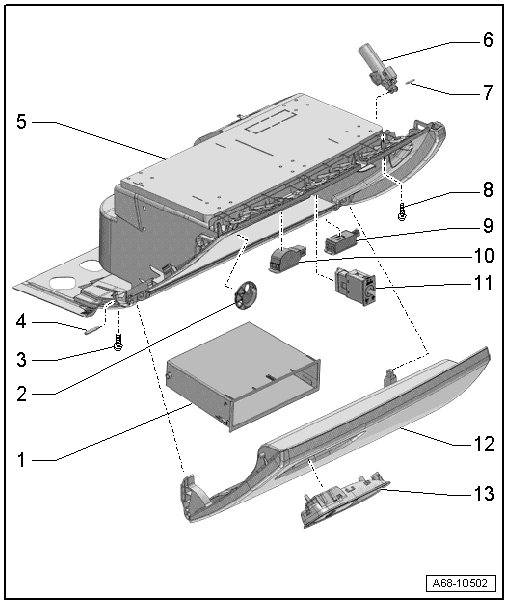

Fig 1: Identifying Glove Compartment Overview

Courtesy of AUDI OF AMERICA, LLC

Storage Compartment
- Equipment levels
- Removing and installing. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Cold Air Vent/Blind Cover
- Equipment levels
Bolt
- 3 Nm
- Quantity: 2 or 3 depending on the equipment level
- Quantity: 3, for market versions with knee airbag
Hinge Pin
- Quantity: 2
- For the glove compartment lid
Glove Compartment
- Removing and installing:
  - Market-specific without knee airbag. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
  - Market-specific with knee airbag. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING, WITH KNEE AIRBAG .
Brake Component
- For the glove compartment lid
- With Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to GLOVE COMPARTMENT LID BRAKING ELEMENT, REMOVING AND INSTALLING .
Hinge Pin
- For the brake component
Bolt
- Quantity: 3, for market versions without knee airbag
- Quantity: 5, for market versions with knee airbag
- 3 Nm
Right Front Footwell Illumination Bulb -L152-
- Equipment levels
- Removing and installing. Refer to REMOVAL AND INSTALLATION
Glove Compartment Lamp -W6-
- Removing and Installing. Refer to REMOVAL AND INSTALLATION .
Front Passenger Airbag Deactivation Key Switch -E224-
- Not for North American market.
Glove Compartment Cover
- Activate the glove compartment cover emergency release. Refer to GLOVE COMPARTMENT LID EMERGENCY RELEASE, OPERATING .
- Removing and installing. Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING .
Glove Compartment Opener
- Removing and installing. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .
- Press into the glove compartment cover until it engages audibly
- Market-specific with knee airbag: with additional threaded connection. Refer to Fig 2

Fig 2: Market-Specific With Knee Airbag: Glove Compartment Handle With An Additional Threaded Connection

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screw -arrow- to 1.8 Nm.
