Front Center Armrest, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console rear cover. Refer to Removing .
-- Remove the rear vent air duct. Refer to [For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Air Conditioning .

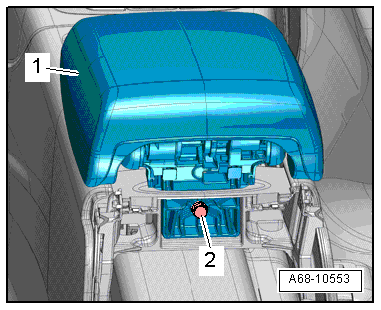

-- Remove the bolt -2-.
-- Remove the center armrest -1- upward.
