Center Console Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

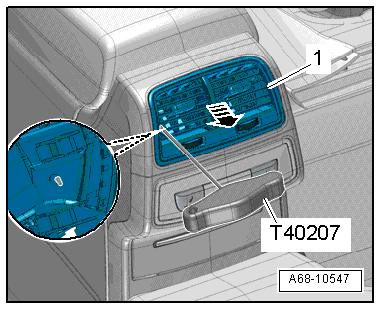

Fig 1: Identifying Vent

Courtesy of AUDI OF AMERICA, LLC

NOTE: The vent has a hole on both sides for attaching the Hook Tool T40207.

-- Carefully insert the Hook Tool T40207 between the slats and hook it into the side of the vent.

-- Alternating between the sides, carefully remove the vent -1- from the installation opening -arrow-.

-- Disconnect the connector.

-- Remove the bolts -1-.

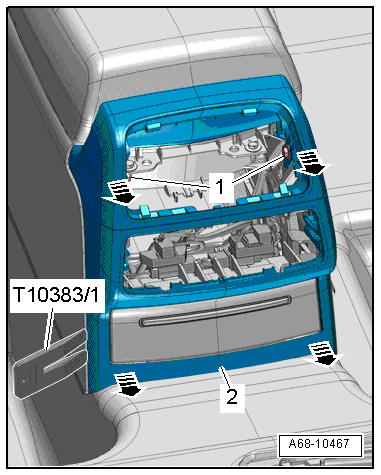

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the cover -2- at the sides starting at the top using the Wedge Set T10383/1 -arrows-.

-- Remove the cover toward the rear from the center console.

-- Disconnect the connectors.

Cigarette lighter/socket mount, removing

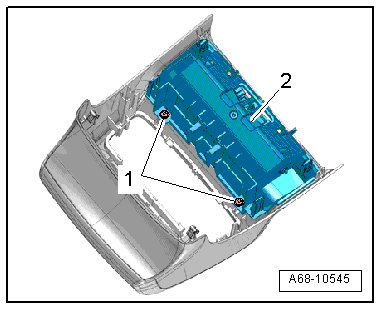

Fig 3: Identifying Bolts And Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

-- Remove the mount -2- for the cigarette lighter and socket from the center console rear cover.
