Front Center Console Storage Compartment, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to Removing .
-- Remove the rear bracket for the center console. Refer to Removing .

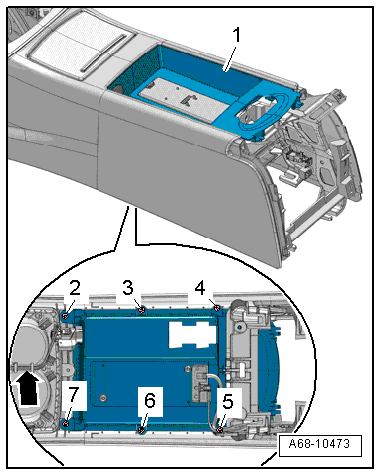

-- Free up the electric wires -arrow-.
-- Remove the screws -2 through 7- and remove the storage compartment -1- downward.
-- Equipment levels with Telephone Baseplate -R126- : Remove the Telephone Baseplate -R126-. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
