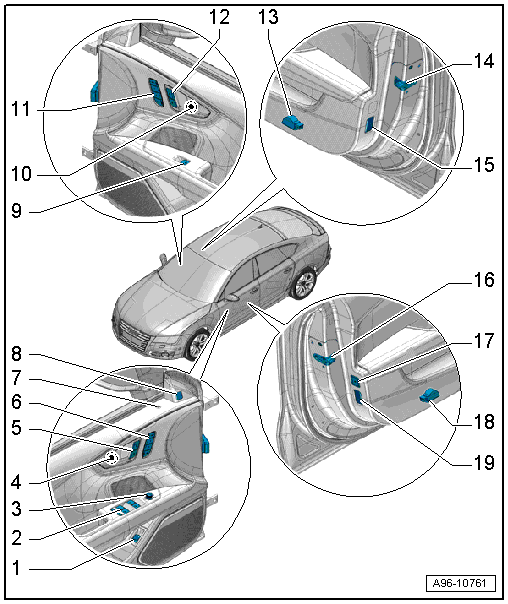

Front Door Lamps And Switches Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Remote Control Lock Switch -E233-
- Removing and installing, refer to REAR LID REMOTE RELEASE BUTTON -E233- .
- Power Window Control Head In Driver Door -E512-
- With Left front window regulator switch -E40-, Right front power window switch in driver door -E81- Left rear window regulator switch in driver door -E53-, Right rear window regulator switch in driver door -E55- and Child safety lock button -E318- or Left child safety lock button -E510-, Right child safety lock button -E511-.
- Removing and installing, refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512- .
- Mirror Adjustment Switch -E43- or Mirror (with fold-away function) Switch -E168-
- Removing and installing, refer to MIRROR ADJUSTING SWITCH -E43- / -E168- .
- Driver Door Opener Illumination -L108-
- Removing and installing, refer to DOOR OPENER ILLUMINATION BULB -L108- / -L109- .
- Driver Interior Lock Switch -E150-
- Removing and installing, refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198- .
- Driver Seat Memory Program Control Head -E97-
- Removing and installing, refer to SEAT MEMORY PROGRAM CONTROL -E97- / -E277- .
- Central Locking -SAFE- Indicator Lamp -K133-
- Removing and installing, refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP -K133- .
- Lane Change Assistance Button -E530-
- Overview, refer to LANE CHANGE ASSISTANCE OVERVIEW .
- Front Passenger Door Window Regulator Switch -E107-
- Removing and installing, refer to FRONT PASSENGER DOOR WINDOW REGULATOR SWITCH -E107- .
- Front Passenger Door Opener Illumination -L109-
- Removing and installing, refer to DOOR OPENER ILLUMINATION BULB -L108- / -L109- .
- Front Passenger Memory Seat Control Head -E277-
- Removing and installing, refer to SEAT MEMORY PROGRAM CONTROL -E97- / -E277- .
- Front Passenger Interior Lock Switch -E198-
- Removing and installing, refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198- .
- Right Front Entry Light -W32-
- Removing and installing, refer to FRONT ENTRY LAMPS -W31- / -W32- .
- Front Passenger Door Contact Switch -F3-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- For replacing the door lock, refer to 57 FRONT DOORS, CENTRAL LOCKING SYSTEM .
- Front Passenger Door Warning Light -W36-
- 12V, 3 W
- Removing and installing, refer to DOOR WARNING LAMPS -W30- / -W36- .
- Driver Door Contact Switch -F2-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- For replacing the door lock, refer to 70 INTERIOR TRIM .
- Alarm System Deactivation Switch -E217-
- Overview, refer to ULTRASONIC INTERIOR MONITORING OVERVIEW .
- Left Front Entry Light -W31-
- Removing and installing, refer to FRONT ENTRY LAMPS -W31- / -W32- .
- Driver Door Warning Light -W30-
- 12V, 3 W
- Removing and installing, refer to DOOR WARNING LAMPS -W30- / -W36- .
