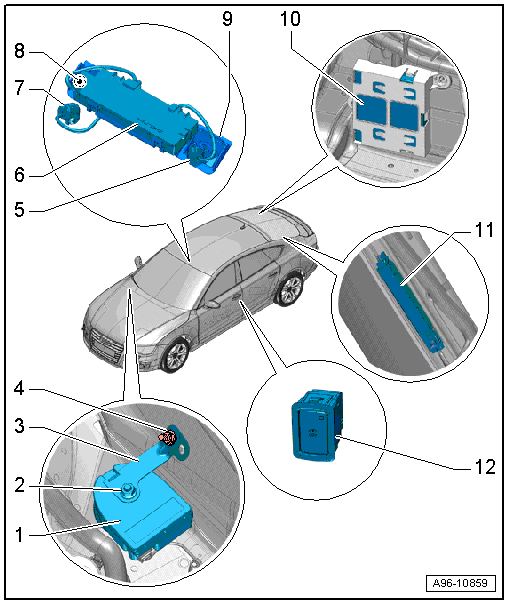

Ultrasonic Interior Monitoring Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Alarm Horn -H12-
- Removing and installing, refer to ALARM HORN -H12- .
- Nut
- 3 Nm
- Bracket
- For Alarm Horn -H12-
- Nut
- 3 Nm
- Left Interior Monitoring Individual Sensor
- Can only be replaced together with the Anti-theft alarm system sensor -G578-.
- Anti-Theft Alarm System Sensor -G578-
- Removing and installing, refer to ANTI-THEFT ALARM SYSTEM SENSOR -G578- .
- Individual Sensor
- For the Anti-theft alarm system sensor -G578-.
- Removing and installing, refer to ANTI-THEFT ALARM SYSTEM SENSOR -G578- .
- Right Interior Monitoring Individual Sensor
- Can only be replaced together with Anti-Theft Alarm System Sensor -G578-.
- Mount
- For the Anti-theft alarm system sensor -G578- and the left and right single sensors.
- Comfort System Central Control Module -J393-
- Removing and installing, refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- .
- Antenna Amplifier 2 -R111-
- With Central Locking and Anti-Theft Alarm System Antenna -R47-.
- Removing and installing, refer to ANTENNA SYSTEMS .
- Alarm System Deactivation Switch -E217-
- Removing and installing, refer to ALARM SYSTEM DEACTIVATION SWITCH -E217- .
