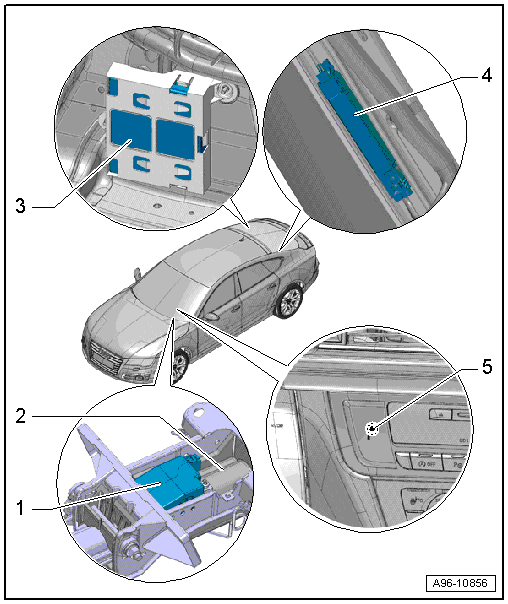

Access/Start Authorization System Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing, refer to Steering .
- Steering Column
- Comfort System Central Control Module -J393-
- Overview, refer to LUGGAGE COMPARTMENT RELAY AND FUSE CARRIER AND CONTROL MODULES OVERVIEW .
- Antenna Amplifier 2 -R111-
- With Central Locking and Anti-Theft Alarm System Antenna -R47-.
- Removing and installing, refer to ANTENNA SYSTEMS .
- Anti-Theft Immobilizer Reading Coil -D2-
- Removing and installing, refer to ANTI-THEFT IMMOBILIZER READER COIL -D2- .
