Engine Coolant Temperature Sensor/Engine Temperature Control Sensor -G62 - / -G694-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Audi S6/RS6/RS7:

-- Remove the radiator, with the fan shroud, refer to Removing .

Audi S7:

-- Remove the fan shroud, refer to Removing .

Engine Coolant Temperature Sensor -G62-:

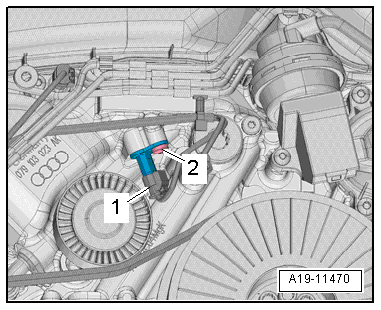

Fig 1: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

NOTE: Use a cloth to catch any leaking coolant.

-- Remove the bolt -2-, and remove the Engine Coolant Temperature Sensor -G62-.

NOTE: If an O-ring remains in the cylinder block, remove the O-ring with a wire.

Engine Temperature Control Sensor -G694-:

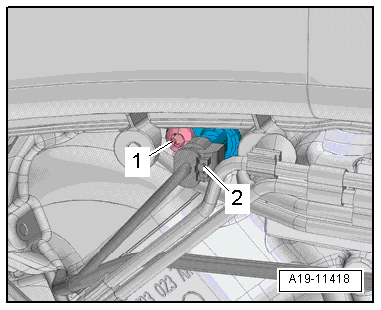

Fig 2: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

NOTE: Use a cloth to catch any leaking coolant.

-- Remove the bolt -1- and remove the Engine Temperature Control Sensor -G694-.

NOTE: If an O-ring remains in the cylinder block, remove the O-ring with a wire.
