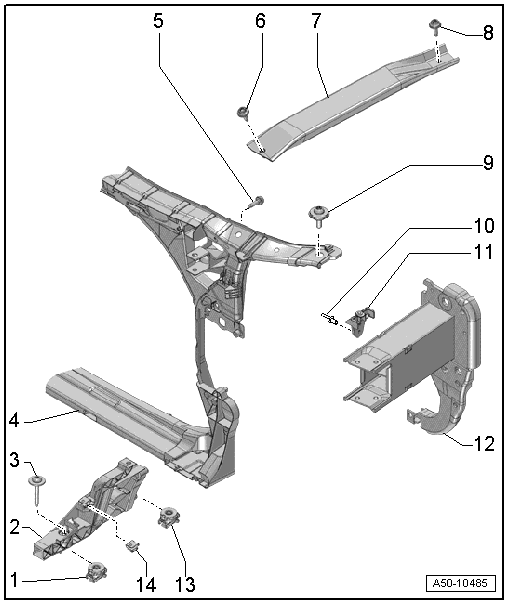

Overview - Lock Carrier, Vehicles Through My 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Adjusting Element
- Mount
- With adjusting element
- For the front bumper cover, headlamp housing bracket
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 8 Nm
- Lock Carrier
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Brace
- For the lock carrier
- Removing and installing. Refer to LOCK CARRIER BRACE, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bolt
- 10 Nm
- Rivet
- Quantity: 2
- Counterhold
- For mount with adjusting mechanism
- Removing and installing. Refer to BUMPER COVER MOUNT COUNTERHOLDER, REMOVING AND INSTALLING .
- Impact Member Mount
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
- Adjusting Element
- Spring Nut
