Overview - Impact Member

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

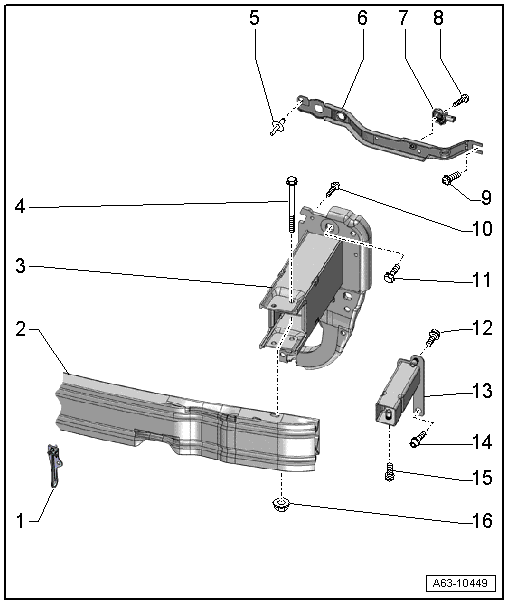

Fig 1: Identifying Impact Member Overview

Courtesy of AUDI OF AMERICA, LLC

Bracket
- for Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
Impact Member Mount
- Removing and Installing: left refer to LEFT IMPACT MEMBER MOUNT, REMOVING AND INSTALLING , right refer to RIGHT IMPACT MEMBER MOUNT, REMOVING AND INSTALLING
Screw
- Quantity: 2
Rivet
- Secures the lock carrier
Connecting Brace
- For supporting the front bumper cover mount
- Removing and installing. Refer to CONNECTING BRACE, REMOVING AND INSTALLING .
Front Airbag Crash Sensor
- Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING
Bolt
- Tightening specification. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING
Bolt
- 4.5 Nm
Screw
- 10 Nm
- Quantity: 4
Bolt
- 55 Nm
- Quantity: 3
Bolt
- 20 Nm
Lower Front Longitudinal Member
- Removing and installing. Refer to LOWER FRONT LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
Bolt
- 20 Nm
Nut
- Quantity: 2
- Tightening specification. Refer to Fig 2.

Fig 2: Front Impact Member - Tightening Specification And Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -A- to 20 Nm in the following sequence: -1 through 4-.
