Lock Carrier, Removing And Installing, Vehicles Through My 2014: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the side impact bar. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .

-- Remove the coolant cooler with fan shroud. Refer to [For engine(s) CEUC,CRDB] Radiator/Coolant Fan [For engine(s) CTUA,CGXB] Radiator/Coolant Fan [For engine(s) CPNB] Radiator/Coolant Fan .

-- Remove the headlamp mount. Refer to [For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Removal and Installation .

-- Remove the screw -3-.

Fig 1: Disconnecting Connectors -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 and 2-.

-- Remove the connector to the front Airbag Crash Sensor while observing the safety precautions. Refer to Safety Precautions .

-- Disconnect the connector -4- from the Secondary Air Injection Pump Motor -V101-, if equipped.

Fig 2: Secondary Air Injection Pump Motor -V101- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons and remove the secondary air hoses -1- and -2-.

-- Disconnect the hood lock cable at the coupling and place it on the lock carrier. Refer to OVERVIEW - RELEASE CABLE .

NOTE:

Ignore -item 3-.

-- Remove the bolts -5 and 6-.

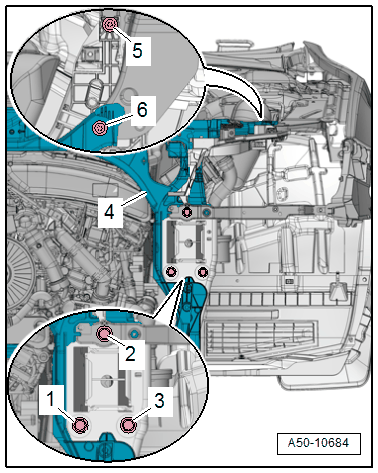

Fig 3: Removing Bolts -5 And 6-

Courtesy of AUDI OF AMERICA, LLC

-- Have a second technician hold the lock carrier -4- and remove the bolts -1 to 3-.

-- Remove the lock carrier and the impact member mounts with a second technician.
