Bumper Cover Mount, Removing And Installing, Vehicles Through My 2014: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the headlamp housing. Refer to [For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Removal and Installation .
-- Remove the right air filter housing. Refer to [For engine(s) CPNB] Air Filter or [For engine(s) CEUC,CRDB] Air Filter[For engine(s) CTUA,CGXB] Air Filter .
-- Left side of Audi S7/RS 7: Remove the secondary air injection pump motor with bracket. Refer to [For engine(s) CEUC,CRDB] Secondary Air Injection System[For engine(s) CTUA,CGXB] Secondary Air Injection System .

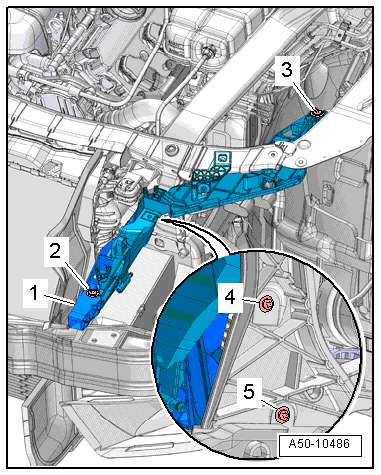

-- Remove the bolts -2 to 5-.
-- Remove the mount -1-.
-- If the mount -1- is being replaced, loosen the bolts -2 and 3- and remove the headlamp housing mount -4-.
