Washer Fluid Reservoir

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Observe notes on contact corrosion CONTACT CORROSION .

Removal

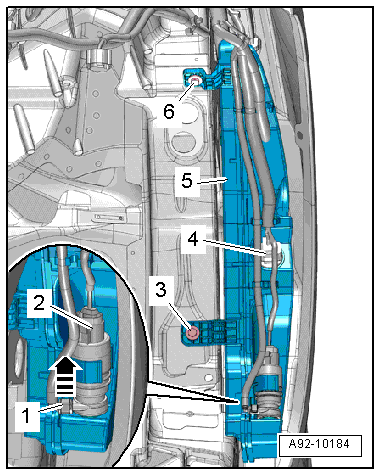

Fig 1: Identifying Washer Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK .

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Open the clip -arrow- and remove the windshield washer fluid hose -1- from the windshield washer pump.

-- Disconnect the connectors -2 and 4-.

-- Remove the wiring harness -5- and the windshield washer fluid hose from the mounts on the windshield washer fluid reservoir.

-- Remove the bolts -3 and 6-.

-- Swivel the lower windshield washer fluid reservoir forward just a little.

-- Disconnect the electrical connector -3-.

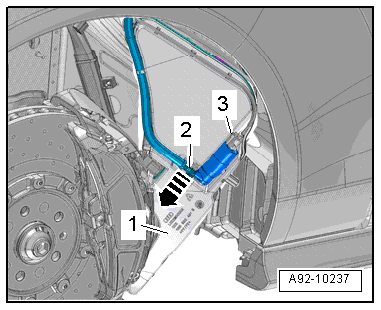

Fig 2: Disconnecting Electrical Connector -3-

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip -arrow- and remove the washer fluid hose -2- for the headlamp washer system from the hose coupling.

-- Remove the windshield washer fluid reservoir -1-.

Installation

Fig 3: Identifying Securing Tab -1- Engages In Mount -2- On Fender

Courtesy of AUDI OF AMERICA, LLC

Tightening Specifications and Sequence, refer to Washer Fluid Reservoir, Tightening Specifications and Sequence .

Install in reverse order of removal, observing the following:

-- When inserting the washer fluid reservoir, make sure the securing tab -1- engages in the mount -2- on the fender end plate.

-- Install the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Install the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK .
