Headlamp Spray Nozzle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose Clamps up to 25 mm3094
Hose Clamp PliersV.A.G 1275

Removal

Fig 1: Hose Clamps 3094

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .

-- Clamp off the windshield washer fluid hose -1- with hose clamps 3094.

-- Pull the spray nozzle telescope -2- all the way out of the bumper cover -arrow A-.

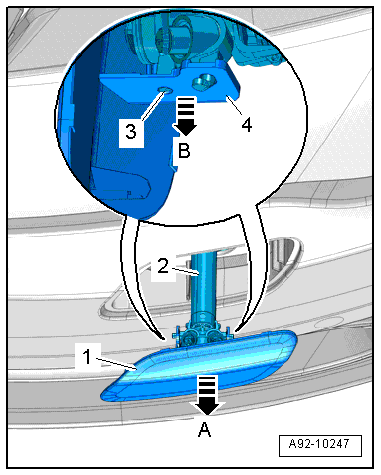

Fig 2: Pulling Spray Nozzle Telescope -2- All Way Out Of Bumper Cover -Arrow A-

Courtesy of AUDI OF AMERICA, LLC

Hold the telescope in the pulled-out position.

-- Expand the side pieces -4- on the cover -1- for the spray nozzle -arrow B- and carefully disconnect it from the retaining pin -3- and remove it.

NOTE:

Lay a cloth under the point of separation to catch any washer fluid.

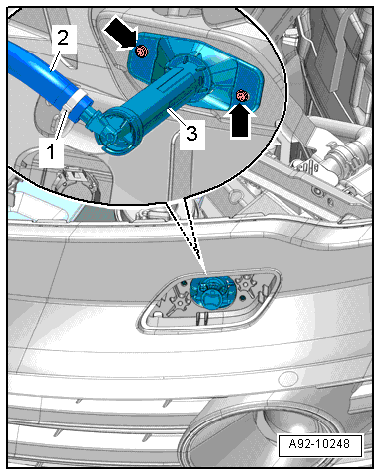

Fig 3: Removing Bolts -Arrows- And Remove Spray Nozzle -3-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -1- on the left side of the vehicle and remove the windshield washer fluid hose -2- from the spray nozzle.

-- Open the clip on the right side of the vehicle and remove the windshield washer fluid hose from the spray nozzle.

-- Remove bolts -arrows- and remove the spray nozzle -3-.

Installation

Tightening specification, refer to HEADLAMP WASHER FLUID HOSE, NOZZLE AND RESERVOIR OVERVIEW .

Install in reverse order of removal, observing the following:

NOTE:

Secure all hose connections using standard hose clamps.

-- Install the clamp using V.A.G 1275.

-- Install the headlamp housing: HID headlamp, refer to HEADLAMP HOUSING , LED headlamp, refer to HEADLAMP HOUSING .
