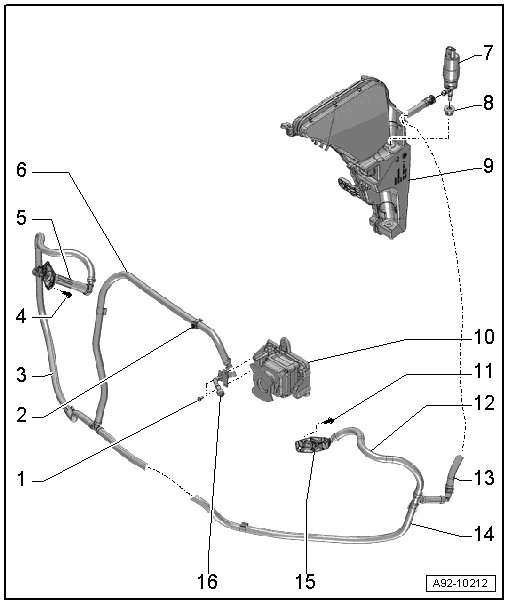

Headlamp Washer Fluid Hose, Nozzle And Reservoir Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Screw
- 2.5 Nm
- Quantity 2
- Clip
- Quantity 3
- Washer Fluid Hose
- For the right spray nozzle
- Screw
- 2.5 Nm
- Quantity 2
- Right Washer Nozzle
- Removing and installing, refer to HEADLAMP SPRAY NOZZLE .
- Washer Fluid Hose
- To the spray nozzle for the night vision camera.
- Headlamp Washer Pump -V11-
- Removing and installing, refer to HEADLAMP WASHER PUMP -V11- .
- Sealing Grommet
- For the Headlamp washer pump -V11-
- Washer Fluid Reservoir
- Mount
- For the Night vision system camera -R212-
- Screw
- 2.5 Nm
- Quantity 2
- Washer Fluid Hose
- For the left spray nozzle
- Washer Fluid Hose
- To the spray nozzles
- Washer Fluid Hose
- For the left spray nozzle and the night vision camera.
- Left Washer Nozzle
- Removing and installing, refer to HEADLAMP SPRAY NOZZLE .
- Spray Nozzle For The Night Vision System Camera -R212-
- Removing and installing, refer to NIGHT VISION SYSTEM CAMERA SPRAY NOZZLE .
