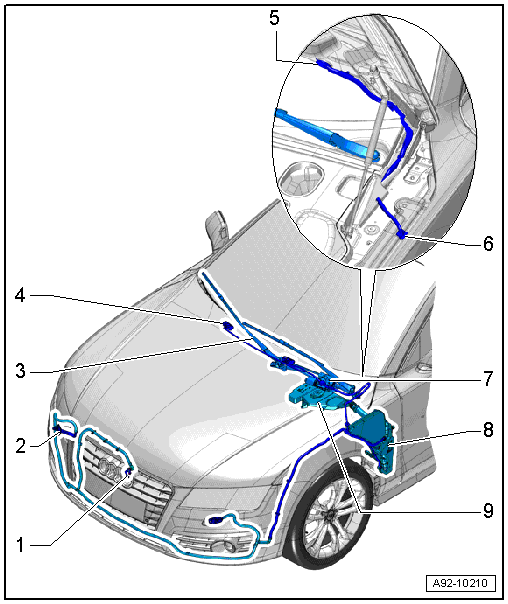

Windshield Washer/Wiper And Headlamp Washer System Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Spray Nozzle For The Night Vision System Camera -R212-
- Overview, refer to HEADLAMP WASHER FLUID HOSE, NOZZLE AND RESERVOIR OVERVIEW .
- Headlamp Washer System Spray Nozzle
- Overview, refer to HEADLAMP WASHER FLUID HOSE, NOZZLE AND RESERVOIR OVERVIEW .
- Wiper Arm
- Overview, refer to WINDSHIELD WIPER SYSTEM OVERVIEW .
- Spray Nozzle
- Overview, refer to WINDSHIELD WASHER FLUID RESERVOIR, LINES AND NOZZLE OVERVIEW .
- Grommet
- For the windshield washer fluid hose inside the hood.
- Grommet
- For the windshield washer fluid hose on the fender.
- Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Overview, refer to WINDSHIELD WIPER SYSTEM OVERVIEW .
- Washer Fluid Reservoir
- Overview, refer to WINDSHIELD WASHER FLUID RESERVOIR, LINES AND NOZZLE OVERVIEW .
- Washer Fluid Filler Tube
- For washer fluid reservoir.
- Overview, refer to WINDSHIELD WASHER FLUID RESERVOIR, LINES AND NOZZLE OVERVIEW .
