Reducing Agent Delivery Module, Removing And Installing: Installing
WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:
CAUTION:
There is a risk of contamination.
- Follow the guidelines for cleanliness when working on the fuel supply system. Refer to CLEAN WORKING CONDITIONS .
NOTE:
Replace the seal.
Clean the sealing surfaces thoroughly.
CAUTION:
There is a risk of malfunctions.
- The sealing ring must not be twisted on itself.
- Do not bend the heating mats when installing them.

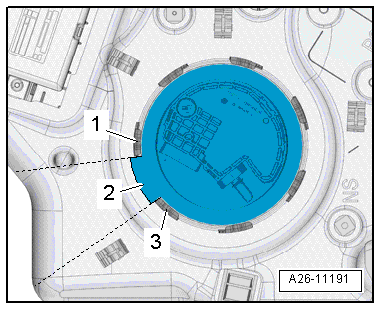

-- Bring the heating reservoir into the installation position:
- The latch -2- on the locking flange must lie between tabs -1 and 3-.
- The installation direction of the latch -2- is shown in the illustration above.

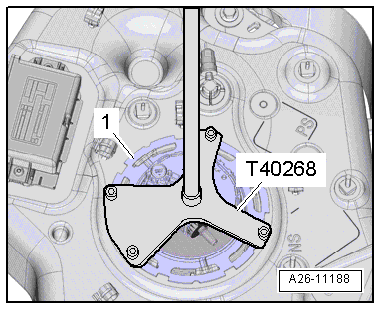

-- Lock the locking ring -1- clockwise using the : T40268 .

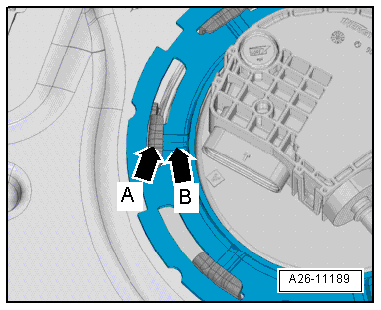

- The locking rink is correctly locked, when the retaining tabs on the locking ring and mounts are aligned -arrows, A, and B-.
-- Install the reducing agent tank. Refer to REDUCING AGENT TANK, REMOVING AND INSTALLING .
-- Adapting adaptation value after draining reducing agent or replacing components. Refer to SCR-SYSTEM ADAPTATION VALUE, ADAPTING .
