Overview - Trim Molding, A5

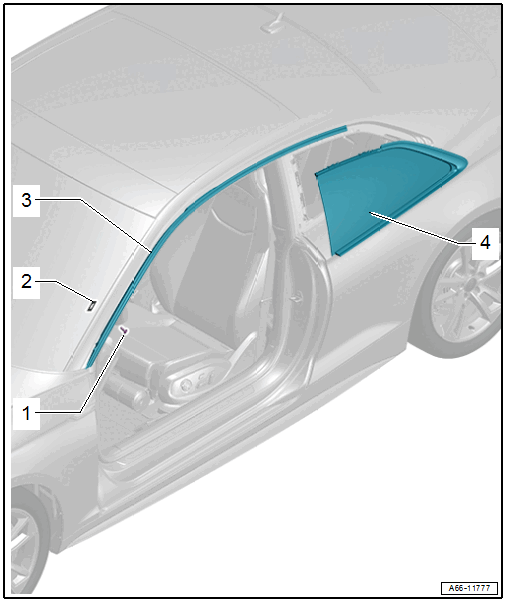

Fig 1: Trim Molding, A5

Courtesy of AUDI OF AMERICA, LLC

Pop Rivet
- Quantity: 9
Paint Protection - Base
- Quantity: 10
Roof Trim Molding
- Removing and Installing. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING .
Side Window
- With trim molding and roof trim molding mount
- Removing and Installing:
  - A5 Coupe. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A5 COUPE .
  - A5 Sportback. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A5 SPORTBACK .
