Overview - Sunroof Shade, A4 AVANT

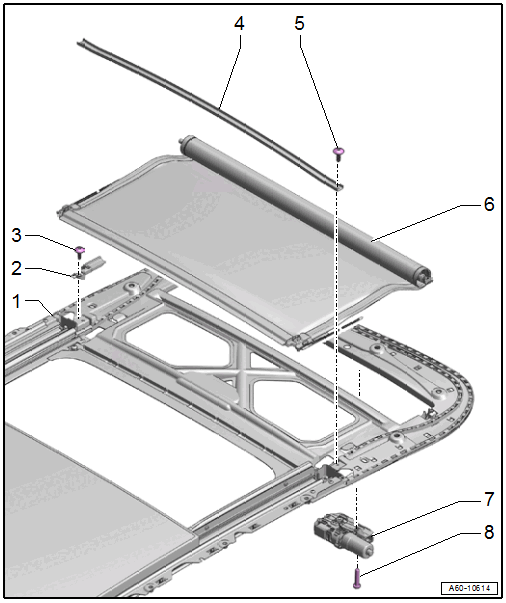

Fig 1: Exploded View Of Sunroof Shade, A4 Avant

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sunroof Frame
Guide
- For sunroof shade
- Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Bolt
- 2.5 Nm
- Thread cutting
- Position and install by hand
- Quantity: 2
Cross Bar
- Pay attention to the distance of the cross bar to the sunroof shade. Refer to INSTALLING .
Bolt
- 2.5 Nm
- Thread cutting
- Position and install by hand
- Quantity: 2
Sunroof Shade
- Removing and Installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to SUNROOF SHADE MOTOR -V260-, ADAPTING .
Sunroof Shade Motor -V260-
- Removing and Installing. Refer to SUNROOF SHADE MOTOR -V260-, REMOVING AND INSTALLING, A4 AVANT .
- Perform the adaptation after installing. Refer to SUNROOF SHADE MOTOR -V260-, ADAPTING .
Bolt
- 3 Nm
- Quantity: 2
