Overview - Sliding Sunroof, A5

Overview - Adhesive Beads on Sliding Sunroof. Refer to OVERVIEW - ADHESIVE BEADS ON SLIDING SUNROOF .

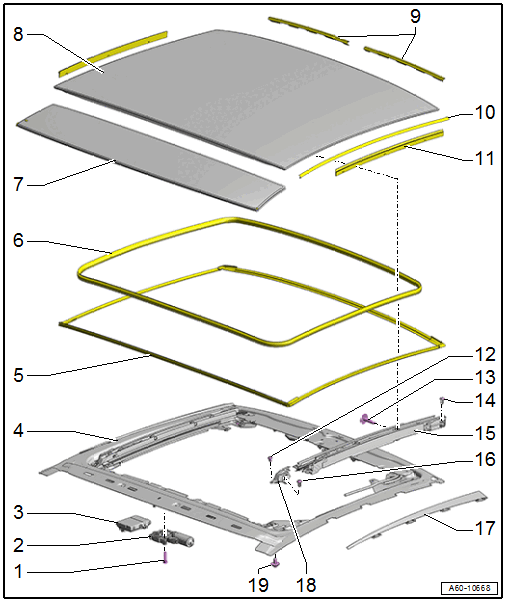

Fig 1: Exploded View Of Sliding Sunroof, A5

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 3 Nm
- Quantity: 3
Sunroof Motor -V1-
- Removing and Installing. Refer to SUNROOF MOTOR -V1-, REMOVING AND INSTALLING, A5 .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Sunroof Control Module -J245-
- Removing and Installing. Refer to SUNROOF CONTROL MODULE -J245-, REMOVING AND INSTALLING, A5 .
- Perform the adaptation after installing. Refer to SUNROOF CONTROL MODULE -J245-, PROGRAMMING .
Sunroof Frame
- Replace after removing.
- Drain pipe, removing and installing. Refer to DRAIN PIPE, REMOVING AND INSTALLING .
- Removing and Installing:
  - Coupe. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A5 COUPE .
  - Sportback. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A5 SPORTBACK .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Seal
- Outside
- Bonded to the sunroof frame
- Replace after removing.
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, A4 AVANT AND MARKET-SPECIFIC VERSION .
Seal
- Inner
- Bonded to the sunroof frame
- Replace after removing.
- Removing and Installing. Refer to OUTER SUNROOF SEALS, REMOVING AND INSTALLING: .
Glass Trim
- Replace after removing.
- Removing and Installing. Refer to GLASS TRIM, REMOVING AND INSTALLING .
Glass Panel
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, A5 .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, A5 .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
Seal
- For the rear glass panel
- Replace after removing.
- Removing and Installing. Refer to OUTER SUNROOF SEALS, REMOVING AND INSTALLING: .
Seal
- For the side glass panel
- Replace after removing.
- Removing and Installing. Refer to OUTER SUNROOF SEALS, REMOVING AND INSTALLING: .
Rubber Trim
- Removing and Installing. Refer to RUBBER TRIM, REMOVING AND INSTALLING, A5 .
Bolt
- 3 Nm
Bolt
- 5.5 Nm
- Quantity: 6
Bolt
- 3 Nm
- Quantity: 3
Slide and Tilting Mechanism
- Removing and Installing. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Side Trim
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING .
Guide
- For the slide and tilting mechanism
- Removing and Installing. Refer to SLIDING AND TILTING MECHANISM GUIDE, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 3
- Tightening Sequence:
  - Coupe. Refer to INSTALLING .
  - Sportback. Refer to INSTALLING .
