Overview - Sliding Sunroof, A4 Sedan

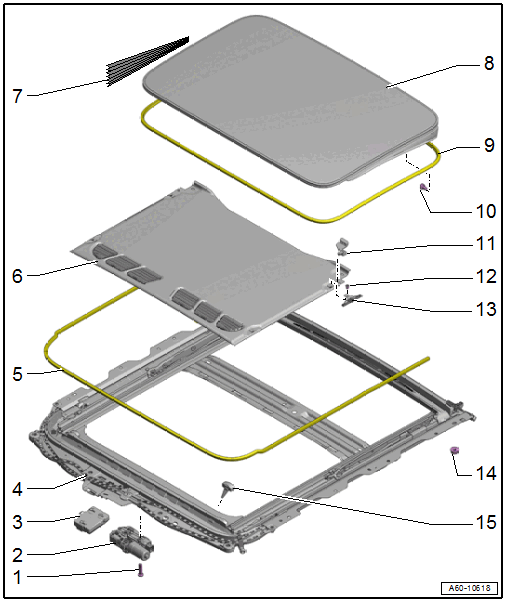

Fig 1: Exploded View Of Sliding Sunroof, A4 Sedan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 3 Nm
- Quantity: 2
Sunroof Motor -V1-
- Removing and Installing. Refer to SUNROOF MOTOR -V1-, REMOVING AND INSTALLING, A4 .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Sunroof Control Module -J245-
- Removing and Installing. Refer to SUNROOF CONTROL MODULE -J245-, REMOVING AND INSTALLING, A4 .
- Perform the adaptation after installing. Refer to SUNROOF CONTROL MODULE -J245-, PROGRAMMING .
Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A4 SEDAN .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Foam Seal
- Bonded to the sunroof frame
- Replace after removing.
Sun Shade
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
Boot
- Removing and Installing. Refer to BOOT, REMOVING AND INSTALLING .
Glass Panel
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, A4 SEDAN .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, A4 SEDAN .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
Sliding Sunroof Seal
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, A4 SEDAN .
- Perform the adaptation after installing. Refer to SUNROOF MOTOR -V1-, PROGRAMMING .
Bolt
- 3 Nm
- Replace after removing.
- Self-locking
- Quantity: 6
Rubber Buffer
- Installed on the sun shade
Bolt
- 1.5 Nm
- Replace after removing.
- Self-locking
- Quantity 4
Gliding Piece
- For the sun shade
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
Nut
- Quantity: 12
- Tightening sequence. Refer to Installing .
- 8 Nm
Rubber Buffer
