Overview - Convertible Top Cover And Convertible Top Headliner

• Overview - Repair Kit Tension and Guide Cable. Refer to OVERVIEW - REPAIR KIT TENSION AND GUIDE CABLE .

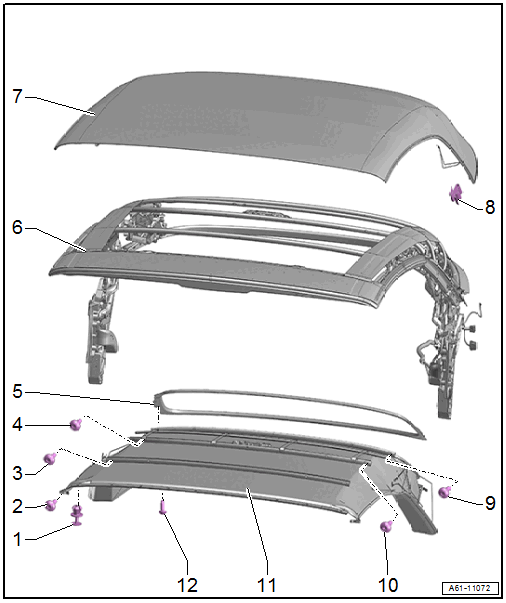

Fig 1: Exploded View Of Convertible Top Cover And Convertible Top Headliner

Courtesy of AUDI OF AMERICA, LLC

1. Expanding Rivet
2. Bolt
   • 2.5 Nm
3. Bolt
   • 2 Nm
4. Bolt
   • 2 Nm
5. Rear Window Frame
   • For the convertible top headliner
6. Convertible Top Frame
   • Overview. Refer to OVERVIEW - CONVERTIBLE TOP FRAME .
7. Convertible Top Cover
   • Removing and Installing. Refer to CONVERTIBLE TOP COVER, REMOVING AND INSTALLING .
8. Clip
   • After removal replace the convertible top cover  OVERVIEW - CONVERTIBLE TOP COVER AND CONVERTIBLE TOP HEADLINER - CONVERTIBLE TOP COVER
9. Bolt
   • 2 Nm
10. Bolt
    • 2 Nm
11. Convertible Top Headliner
    • Removing and Installing. Refer to CONVERTIBLE TOP HEADLINER, REMOVING AND INSTALLING .
12. Bolt
    • 2 Nm
