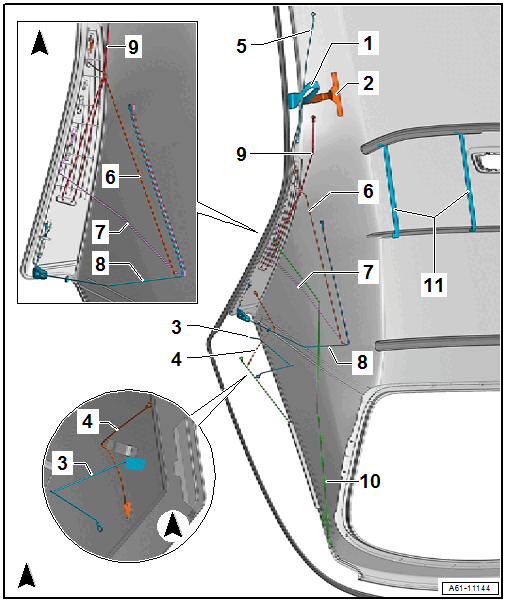

Overview - Repair Kit Tension And Guide Cable

• Procedure for repair of tension and guide cables Refer to TENSION AND GUIDE CABLES PROCEDURE FOR REPAIR .

Courtesy of AUDI OF AMERICA, LLC

1. Tension Cable
   • Total length installed: 187 mm
   • Total length measured between the ends of the tension cable.
2. Tension Cable
   • Total length installed: 250 mm
   • Total length measured between the ends of the tension cable.
3. Tension Cable
   • Total length installed:205 ± 2 mm
   • Total length measured from the strap end.
   • Overlap on the tab: 20 mm
4. Tension Cable
   • Total length installed: 250 ± 2 mm
   • Total length measured from the strap end.
   • Overlap on the tab: 20 mm
5. Guide Cable
   • Total length installed: 255 ± 2 mm
   • Total length measured from the end of the stitching to the tab.
   • Overlap on the tab: 20 mm
6. Guide Cable
   • Total length when installed 683 ^{+ 3}_{- 2} mm
   • Total length measured between the ends of the loops.
7. Guide Cable
   • Total length when installed 597 ^{+ 3}_{- 2} mm
   • Total length measured between the ends of the loops.
8. Guide Cable
   • Total length when installed 611 ^{+ 3}_{- 2} mm
   • Total length measured between the ends of the loops.
   • Dimension between the seal and securing eye on the convertible top headliner: 138 mm  or dimension between the seal and the end of the loop: 191 ± 2 mm
   • The securing element is located between the mount on the convertible top headliner and the seal.
9. Guide Cable
   • Total length when installed:520 ± 3 mm
   • Total length measured between the center of the eyes
10. Guide Cable
    • Total length when the upper guide cable is installed: 705 ± 2 mm
    • Total length when the lower guide cable is installed: 448 ± 2 mm
    • Total length measured between the end of the loops and the end of the stitching to the tab.
11. Tension Cable
    • Total length when installed: 335 ± 1 mm
    • Total length measured between the ends of the tension cable.
