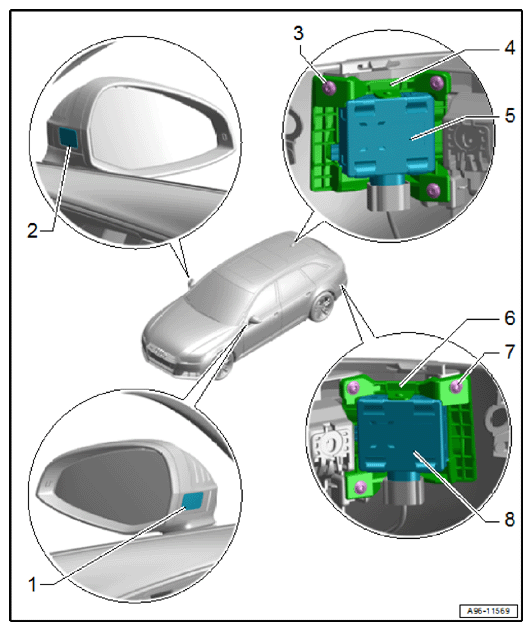

4.1 Overview - Lane Change Assistance
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror - K233-
- Removing and installing. Refer to 4.2 Lane Change Assistance Warning Lamp In Driver and Front Passenger Exterior Rearview Mirror -K233-/-K234-, Removing and Installing .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror - K234-
- Removing and installing. Refer to 4.2 Lane Change Assistance Warning Lamp In Driver and Front Passenger Exterior Rearview Mirror -K233-/-K234-, Removing and Installing .
- Bolt
- 2 Nm
- Quantity: 3
- Bracket
- For lane change assistance control module
- Lane Change Assistance Control Module - J769-
- Removing and installing. Refer to 4.3 Lane Change Assistance Control Modules -J769-/-J770-, Removing and Installing
- Calibrating. Refer to 4.4 Lane Change Assistance, Calibrating .
- Bracket
- For lane change assistance control module
- Bolt
- 2 Nm
- Quantity: 3
- Lane Change Assistance Control Module 2 - J770-
- Removing and installing. Refer to 4.3 Lane Change Assistance Control Modules -J769-/-J770-, Removing and Installing
- Calibrating. Refer to 4.4 Lane Change Assistance, Calibrating
