Drain Pipe, Removing And Installing: Installing

If the drain tube is replaced, the new part must be cut back to the corresponding length.
If the removed drain pipe is not routed to the end of the clips (refer to REMOVING ) the new drain pipe must be cut to a longer length. For this at least 10 mm from the marking. Refer to REMOVING . The drain pipe may have a maximum projecting end of 12 mm on the end of the clips.

-- New part: cut the drain tube to the corresponding length and apply the marking using the removed drain pipe.

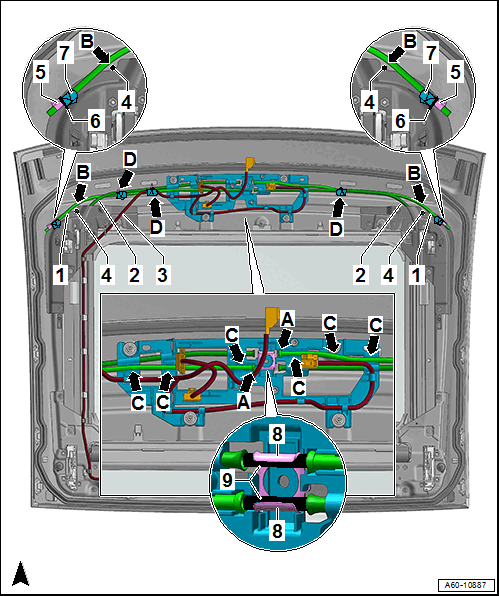

-- Apply the non-woven adhesive tape -7- on the marking -6- on the drain pipe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the drain pipe -1- to the adjustment wire -9-.

-- Push the drain pipe -1- in the catches -C arrows- and in the clip -5- until they click into place.

When pressing in the catches -C arrows- it must be held from the rear.
The end of the drain pipe must be located in the cut-out -arrow A- for this.
The drain pipe -1- must in the installed position, be routed over the positioning tube -2- as shown.

-- Insert the drill bit -4- with a diameter of 13 mm between the drain pipe -1- and sunroof frame -arrow B-.

-- Wrap the drain pipe -1- and positioning tube -2- at the position, where the cable tie -arrow D- previously were with non-woven adhesive tape.

-- Secure the drain pipe -1- and adjustment tube -2- for the assembly with the non-woven adhesive tape on the sunroof frame.
