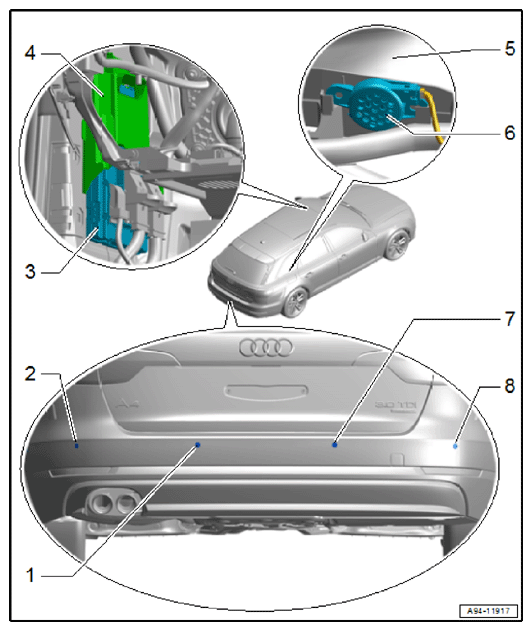

11.1.2 Overview - Rear Parking Aid

Left Rear Center Parking Aid Sensor - G204-
- Removing and Installing. Refer to 11.5 Rear Parking Aid Sensor, Removing and Installing
Left Rear Parking Aid Sensor - G203-
- Removing and Installing. Refer to 11.5 Rear Parking Aid Sensor, Removing and Installing
Vehicle Electrical System Control Module - J519-
- Component Location Overview. Refer to Component Location Overview - Control Modules
Bracket
- For vehicle electrical system control module
Belt Guide
- Right rear parking aid sensor
Rear Parking Aid Warning Buzzer - H15-
- Discontinued as of MY 2019 and the Front Parking Aid Warning Buzzer - H22- is exclusively installed on all parking aid versions.
- Removing and Installing. Refer to 11.3 Rear Parking Aid Warning Buzzer - H15-, Removing and Installing
Right Rear Center Parking Aid Sensor - G205-
- Removing and Installing. Refer to 11.5 Rear Parking Aid Sensor, Removing and Installing
Right Rear Parking Aid Sensor - G206-
- Removing and Installing. Refer to 11.5 Rear Parking Aid Sensor, Removing and Installing
