11.3 Rear Parking Aid Warning Buzzer - H15-, Removing and Installing
NOTE:
The Rear Parking Aid Warning Buzzer - H15- is discontinued as of MY 2019 and the Front Parking Aid Warning Buzzer - H22- is exclusively installed on all parking aid versions.
Removing
- Sedan: Remove the right C-pillar trim panel. Refer to → C-Pillar Trim Panel, Removing and Installing
- Avant: Remove the luggage compartment side trim panel. Refer to → Luggage Compartment Side Trim Panel, Removing and Installing

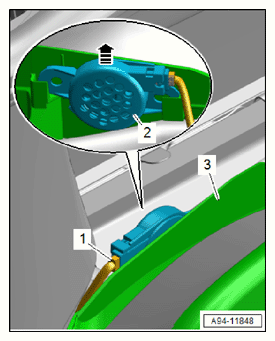

- Remove the rear parking aid warning buzzer -2- from the mount inside the seat belt guide -3-arrow-.
- Disconnect the connector -1-.
Installing
Install in reverse order of removal.
