Overview - Rear Outer Three-Point Seat Belt

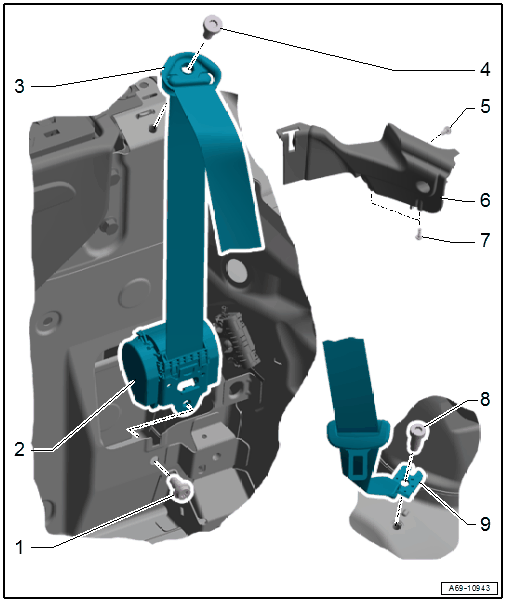

Fig 1: Exploded View Of Rear Outer Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
2. Automatic Belt Retractor
   • Removing and installing, refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
3. Seat Belt Guide
   • must swing in carrier direction after tightening bolt
4. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
5. Bolt
   • Tightening specification, refer to OVERVIEW - SIDE TRIM PANEL .
6. Belt Guide
   • Removing and installing, refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
7. Bolt
   • 1.2 Nm
   • Quantity: 2
8. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
9. Belt End Fitting
   • Removing and installing, refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
