Overview - Side Trim Panel

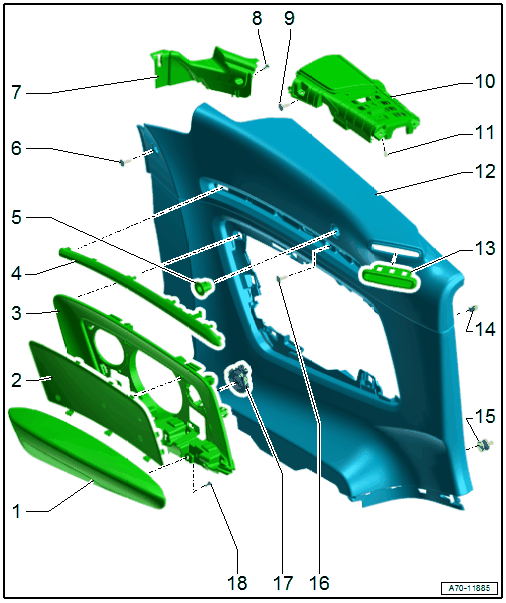

Fig 1: Exploded View Of Side Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Arm Cushion
- Removing and installing, refer to ARM CUSHION, REMOVING AND INSTALLING .
Speaker Trim
- Removing and installing, refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert in the side trim and press on it until it engages audibly.
Cover
- Removing and installing, refer to ARM CUSHION, REMOVING AND INSTALLING .
- Insert in the side trim and press on it until it engages.
Trim Panel
- Removing and installing, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
Mount
- For the wind deflector
- Clipped in the side trim
Bolt
- 2.5 Nm
Rear Seat Belt Guide
- Removing and installing, refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
Bolt
- 8 Nm
Convertible Top Frame Cover
- Removing and installing, refer to CONVERTIBLE TOP FRAME FLAP, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
- Quantity: 5
Side Trim Panel
- Removing and installing, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Seat Belt Guide
- Removing and installing, refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
Clips
- Quantity: 3
- insert into the side trim
- Remove the clips that are still in the mounting points on the body using Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
Clip
- For the side trim
- Quantity: 2
- Insert in the trim panel
- Replace damaged or deformed clips
Bolt
- 2.5 Nm
Treble Speaker
- Allocation, refer to the Parts Information.
- Removing and installing, refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
- Clipped in the side trim
Bolt
- 1.2 Nm
- For the arm cushion
- Quantity: 11
