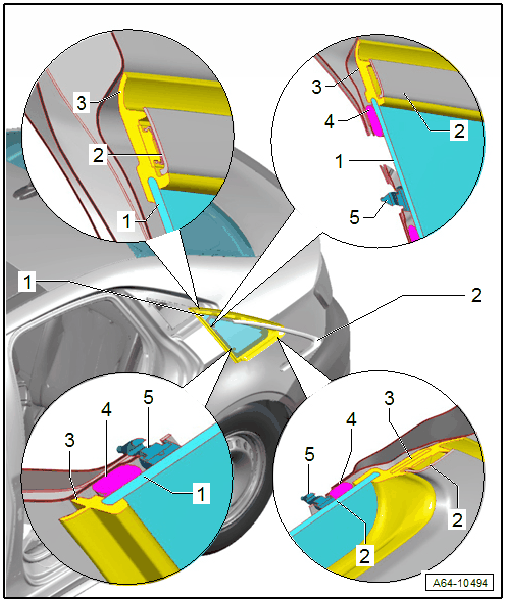

Overview - Rear Side Window, Sedan
WARNING: This page is about a different variant/trim than selected.
The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Side Window
- Removing. Refer to UNDAMAGED SIDE WINDOW, REMOVING, SEDAN .
- Installing. Refer to SIDE WINDOW, INSTALLING .
- Trim Molding
- Molding
- No replacement part
- Must not be damaged in the visible area.
- Adhesive Bead
- Locating Pin
- No replacement part
- Is cut through when removing window.
