Undamaged Side Window, Removing, Sedan
-- In the window glass cutting area, protect the side panel and roof against paint damage with adhesive tape.
-- Slide protective film between the cutting wire and the trim panels in the vehicle interior.
Risk of injury to the hands and eyes from glass fragments.
Getting cut is possible.
- Wear protective eyewear.
- Wear safety gloves.

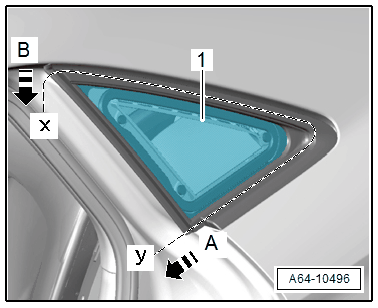

-- Route the cutting cord around the side window as shown in the illustration.
-- Secure ends X and Y in two pull handle from the :VAG1351 .
-- Push in a protective file on the inside in the entry zone cutting cord between the cutting cord and the trim to protect against damage.
-- Pull cutting wire forward in direction of arrow -A- using light sawing motions and cut through lower adhesive sealing material at side panel and at roof frame.
-- At the same time, the first the locating pin on the rear of the window glass and then the adhesive bead are cut through.
-- Pull the cutting wire in the direction of the arrow -B- downward through the adhesive bead.
