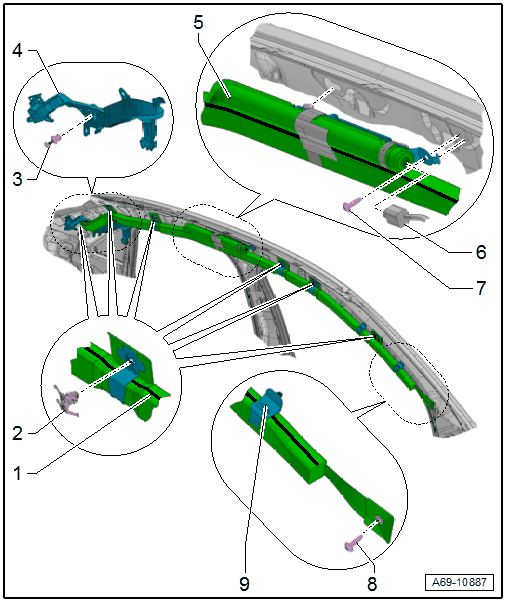

Overview - Head Curtain Airbag, Sedan: Notes
WARNING: This page is about a different variant/trim than selected.
- Black Line
- Serves as anti-rotation protector
- Must be visible after assembly.
- Clip
- Quantity: 6
- Removing and Installing. Refer to REMOVING .
- Expanding Clip
- Quantity: 3
- Head Curtain Airbag Guide
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG GUIDE, REMOVING AND INSTALLING .
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Connector
- Driver side: for Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
- Disconnecting and connecting. Refer to REMOVING .
- Bolt
- 5 Nm
- Replace after removing.
- Bolt
- 5 Nm
- Replace after removing.
- Clip
- Quantity: 2
