Head Curtain Airbag Guide, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

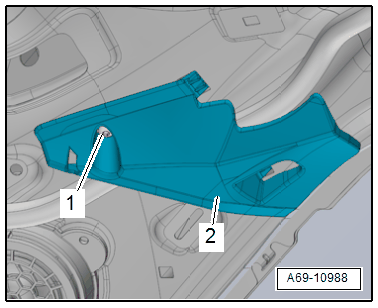

A3:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Disengage and remove the head curtain airbag guide -2- from the body.

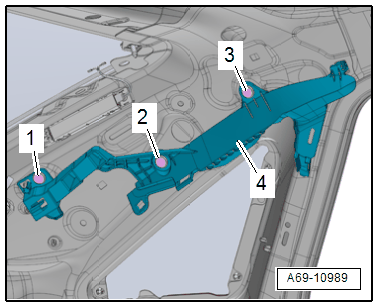

SEDAN:

Courtesy of AUDI OF AMERICA, LLC

-- Versions equipped with a sliding sunroof: disengage the water drain hose.

-- Unclip the rear clips for the head curtain airbag REMOVING .

-- Remove the expanding clips -1, 2 and 3-.

-- Disengage and remove the head curtain airbag guide -4- from the body.
