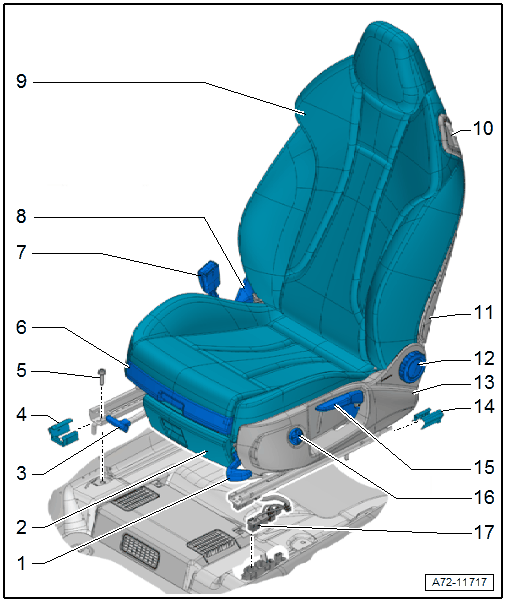

Overview - Front Seat, Manual Super Sport Seat
WARNING: This page is about a different variant/trim than selected.
- Seat Angle Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ANGLE ADJUSTER .
- Storage Compartment
- Overview. Refer to OVERVIEW - SEAT PAN, STORAGE COMPARTMENT .
- Seat Forward/Back Adjustment Handle
- Cannot be removed without destroying
- Replace after removing.
- Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Press all the way on the actuator rod
- Front Cover
- For the seat rail
- Quantity: 2
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
- Bolt
- 40 Nm
- Quantity: 4
- Seat Depth Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT DEPTH ADJUSTER .
- Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Tunnel Side Seat Side Trim
- Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
- Super Sport Seat
Vehicles with:
- Seat and backrest heating
- Footwell lamp
- Only Passenger seat child seat anchor
- Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
- Backrest Release/Entry Assistance
- Only A3
- Overview. Refer to OVERVIEW - BACKREST RELEASE AND ENTRY ASSISTANCE .
- Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Hand Wheel
- For backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .
- Seat Side Trim on Side Sill
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
- Rear Cover
- For the seat rail
- Quantity: 2
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
- Seat Height Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT HEIGHT ADJUSTMENT .
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
- Connector
- With a corrugated tube for the modular wiring routing
- Remove the individual wire. Refer to FRONT SEAT WIRE ROUTING .
