Overview - Front Seat, Manual Standard Seat/Sport Seat

WARNING: This page is about a different variant/trim than selected.

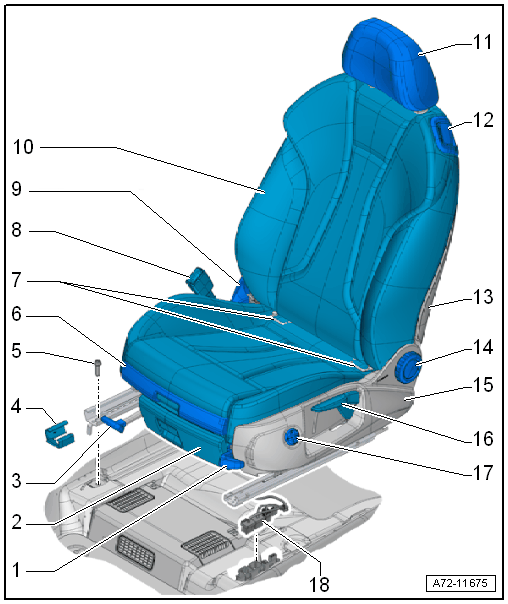

Fig 1: Exploded View Of Front Seat, Manual Standard Seat/Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Angle Adjuster
- Only for Sport seats
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ANGLE ADJUSTER .
Storage Compartment
- Overview. Refer to OVERVIEW - SEAT PAN, STORAGE COMPARTMENT .
Seat Forward/Back Adjustment Handle
- Cannot be removed without destroying
- Replace after removing.
- Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Press all the way on the actuator rod
Cover
- For the seat rail
- Quantity: 4
- Removing and Installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
- Carefully push onto the seat rail until it engages audibly
Bolt
- 40 Nm
- Quantity: 4
Seat Depth Adjuster
- Only for Sport seats
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT DEPTH ADJUSTER .
Child Seat Anchor
- Equipped on some models
- For the front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Checking after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Tunnel Side Seat Side Trim
- Removing and Installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
Standard Seat/Sport Seat
Vehicles with:
- Fabric
- Leather
- Seat and backrest heating
- Lumbar support
- Footwell lamp
- Removing and Installing. Refer to FRONT SEAT, REMOVING AND INSTALLING .
Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Backrest Release/Entry Assistance
- Only A3
- Overview. Refer to OVERVIEW - BACKREST RELEASE AND ENTRY ASSISTANCE .
Backrest Cover
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
Hand Wheel
- For backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .
Seat Side Trim on Side Sill
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, MANUAL FRONT SEAT .
Seat Height Adjuster
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT HEIGHT ADJUSTMENT .
Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Equipped on some models
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
Connector
- Wire routing with protective cover
- Remove the individual wire. Refer to FRONT SEAT WIRE ROUTING .
