TV Tuner, Removing And Installing, Convertible: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove The Right Side Trim Panel. Refer to OVERVIEW - SIDE TRIM PANEL .

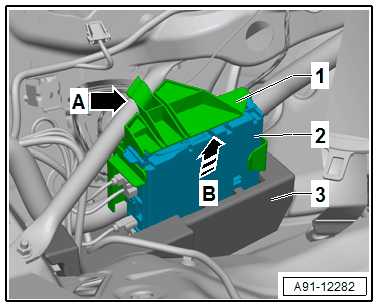

-- Unclip the upper bracket -1- from the brace -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper bracket -1- together with the TV Tuner -R78- -2- from the lower bracket -3- in direction of -arrow B-.

-- Disconnect and remove all connectors from the TV Tuner -R78-.

-- Insert the :VAS6223/9  -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the TV Tuner -R78- from the upper bracket and remove.
