Overview - Side Trim Panel

WARNING: This page is about a different variant/trim than selected.

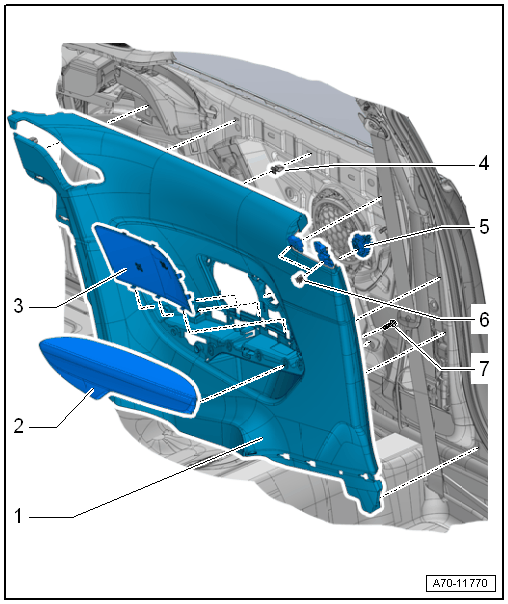

Fig 1: Exploded View Of Side Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Side Trim Panel
- Removing and Installing. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Armrest
- Removing and Installing. Refer to ARMREST, REMOVING AND INSTALLING .
Speaker Trim
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert in the side trim and press on it until it engages audibly.
Clip
- Quantity: 12
- Insert into the side trim panel
- Remove the clips that are still in the mounting points on the body using Omega Clip Tool :T40280 .
- Replace any damaged or deformed clips
Treble Speaker
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
- Clipped in the side trim
Clip
- Quantity: 2
- insert into the side trim panel
- Replace any damaged or deformed clips
Bolt
- 1.2 Nm
- For the armrest
- Quantity: 12
