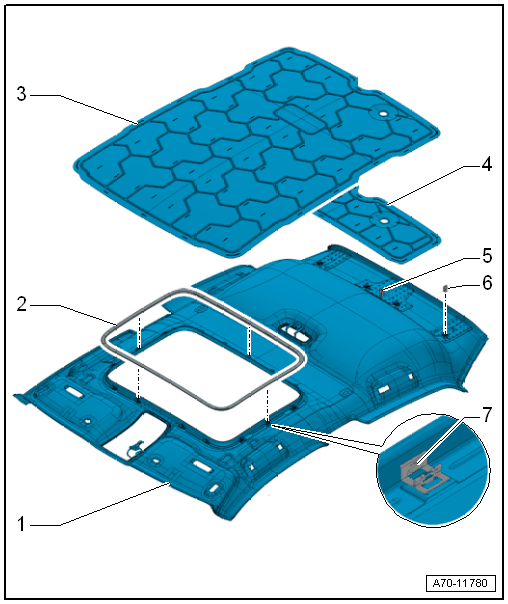

Overview - Headliner, A3
WARNING: This page is about a different variant/trim than selected.
- Headliner
- without a sliding sunroof
- with sliding sunroof
- Removing and Installing. Refer to HEADLINER, REMOVING AND INSTALLING .CAUTION:
- The headliner bends easily.
- Replace the headliner if it is bent.
- Cover Frame
- only for version equipped with sliding sunroof
- Roof Reinforcement
- For vehicles without a sliding sunroof
- Install on the body. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY, WITHOUT SLIDING SUNROOF .
- Roof Reinforcement
- For vehicles with sliding sunroof
- Install on the body. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY, WITH SLIDING SUNROOF .
- Centering Piece
- Clip
- Quantity: 4
- Insert in the headliner
- Remove any remaining clips from the body using Omega Clip Tool :T40280 and use them to install the headliner.
- Replace damaged or deformed clips
- Clip
- For vehicles with sliding sunroof
- Quantity: 15
- Releasing. Refer to REMOVING .
- Insert in the headliner
- Remove the remaining clips in the cover frame and insert in the headliner during installation
- Replace damaged or deformed clips
