Headliner, Removing And Installing, A3: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

Versions Equipped with a Sliding Sunroof:

Courtesy of AUDI OF AMERICA, LLC

-- Open the sliding sunroof -1- all the way.

-- Open the sun shade -2- about ² /₃ .

-- To avoid dirtying the headliner, clean the :T40233 .

Courtesy of AUDI OF AMERICA, LLC

-- Push the :T40233 between the cover frame -2- for the sunroof opening and the headliner.

-- Release the cover frames using the :T40233 one after each other from the brackets -1- -arrows-, as shown in the illustration.

Continuation For All Vehicles:

-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the B-pillar trim panels. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING, A3 .

-- Remove the C-pillar trim panels. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING, A3 .

-- Remove The Front Roof Module. Refer to FRONT INTERIOR LAMP -W1-, REPLACING / OVERVIEW - ROOF TRIM PANEL CONTROLS (For The Front Interior Lamp -W1- With An Led Bulb, The Entire Front Roof Module Must Be Replaced If One Of The LEDs Is Faulty).

-- Vehicle versions with a front camera: remove the front camera trim. Refer to REMOVING - INTERIOR REARVIEW MIRROR WITH OPTIONAL EQUIPMENT: .

-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .

-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .

-- Remove the roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Move the steering wheel as far upward as possible using the entire adjustment range of the steering column.

-- Move the driver seat into the deepest and most forward position and position the backrest as far toward the rear as it will go.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

-- Unclip the rear headliner at the clips -1 and 3- from the body -arrows- using the :80 - 200 .

-- Unclip the rear headliner at the centering pin -2- from the body.

NOTE:

The headliner is removed through the front passenger door.

Courtesy of AUDI OF AMERICA, LLC

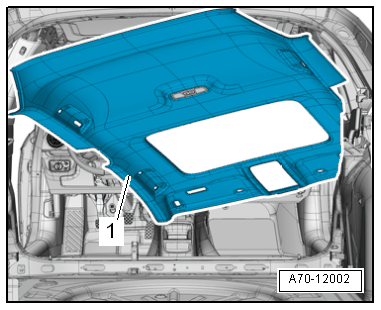

-- Lower the front headliner -1- and turn to the passenger door opening, to do this tip the left side downward.

-- Remove the headliner -1- through the passenger door as shown in the illustration.

Courtesy of AUDI OF AMERICA, LLC
