Overview - Front Door Trim Panel
WARNING: This page is about a different variant/trim than selected.
NOTE:

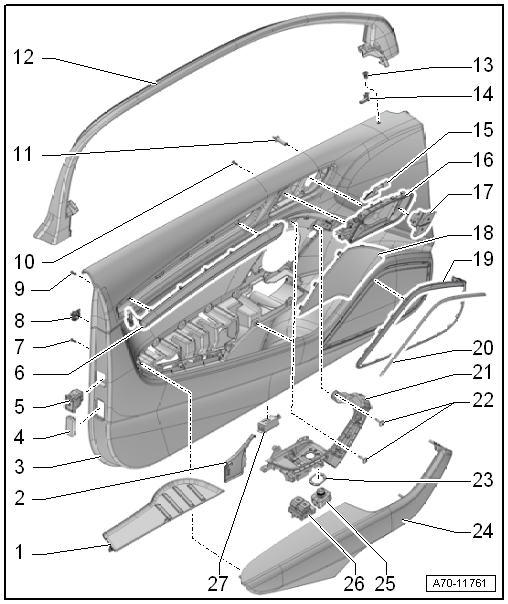

The illustration shows the front door trim on the A3.
- Liner Mat
- Cover
- Equipped on some models
- Clipped in the door pocket.
- Door Trim Panel
- Removing and Installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve -item 13- must be made in the new panel using the old panel as a sample.
- Rear Reflector
- Driver side equipment level: Driver Door Warning Lamp -W30-
- Front passenger side equipment level: Front Passenger Door Warning Lamp -W36-
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR LAMPS .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Equipped on some models
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Decorative Trim
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
- Bolt
- 1.2 Nm
- For pull handle/armrest
- A3: quantity 16
- A3 Sportback/sedan: quantity 12
- Clip
- For door trim panel
- A3: quantity: 8
- A3 Sportback/sedan: quantity 7
- Insert in the trim panel
- Bolt
- 1.2 Nm
- For trim panel
- Quantity: 2
- Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 5
- Stop
- 4.5 Nm
- For door trim panel
- Trim Panel
- For window frame
- Removing and Installing. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Sleeve
- For Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel by using the old panel as a model
- Central Locking -Safe- Indicator Lamp -K133-
- Driver Door Opener Illumination Bulb -L108-
- Front passenger side: Front Passenger Door Opener Illumination Bulb -L109-
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR LAMPS .
- Interior Door Mechanism
- Removing and Installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
- Driver Interior Locking Button -E308-
- Front passenger side: Front Passenger Interior Locking Button -E309-
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR CONTROLS .
- Speaker Trim
- Removing and Installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- Engage in the door trim panel and press on it until it engages audibly
- Lamp for Driver Side Door Speaker Trim -L223-
- Passenger side: Lamp for Passenger Side Door Speaker Trim -L224-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR LAMPS .
- Trim
- For Lamps
- Pull Handle
- with switch mount
- Removing and Installing. Refer to FRONT ARMREST, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 3
- Symbol trim
- Armrest
- Removing and Installing. Refer to FRONT ARMREST, REMOVING AND INSTALLING .
- Mirror Adjusting Switch -E43-
- Equipped on some models: Folding Mirror Adjustment Switch -E168-
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR CONTROLS .
- Power Window Control Head in Driver Door -E512-
- Passenger side: Front Passenger Power Window Button -E716-
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR CONTROLS .
- Driver Side Entry Lamp -W92-
- Passenger side: Passenger Side Entry Lamp -W93-
- Equipped on some models
- Component Location Overview. Refer to OVERVIEW - FRONT DOOR LAMPS .
Door Trim Clamps, only A3 Sportback
- Door trim clamps
- Bolt - 2.5 Nm

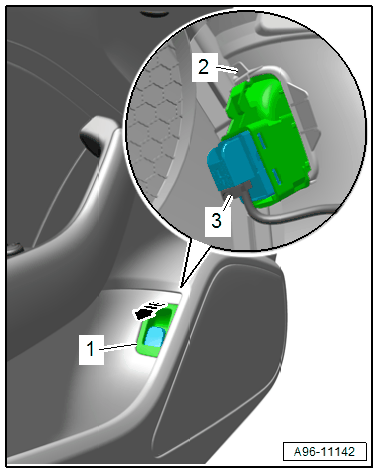

Rear Lid Unlock Switch -E165-, market-specific USA and Canada / Fuel Filler Door Release Button -E319-, A3 e-tron
-- Remove the Rear Lid Unlock Switch -E165- / Fuel Filler Door Release Button -E319-. Refer to OVERVIEW - FRONT DOOR CONTROLS / REAR LID UNLOCK SWITCH -E165- /FUEL FILLER DOOR RELEASE BUTTON -E319-, REMOVING AND INSTALLING .
- Trim
- Clip
- Connector
